Introducing The Long Lasting
Solar Powered GPS Tracker

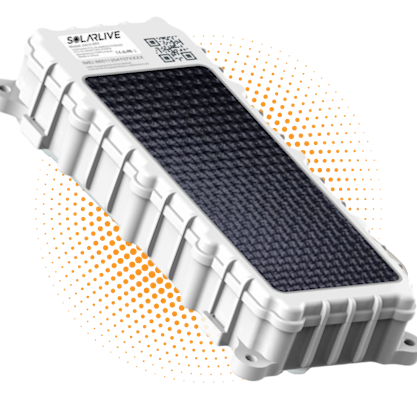

SolarLive Device
Meet SolarLive

SolarLive is our solar powered GPS Tracker that has been specifically designed with shipping containers in mind. It’s built for flexibility, longevity and extreme robustness on all kinds of non-power-supplied assets.

Built with global GPS tracking, motion detection and 5 optional sensors, ready to be mounted and deployed on any shipping container. SolarLive is the one and only solution for long distance tracking.

Contact Us

SolarLive Sensors (7 Smart Sensors)

All SolarLive Devices come with default GPS tracking and motion sensors with the option to add any or all of the 5 additional sensors. Each of the sensors are built to respond to exceptional events set by you - such as cargo being stored at the wrong temperature, when mounted, or if it has been dropped.

SolarLive GPS Tracker

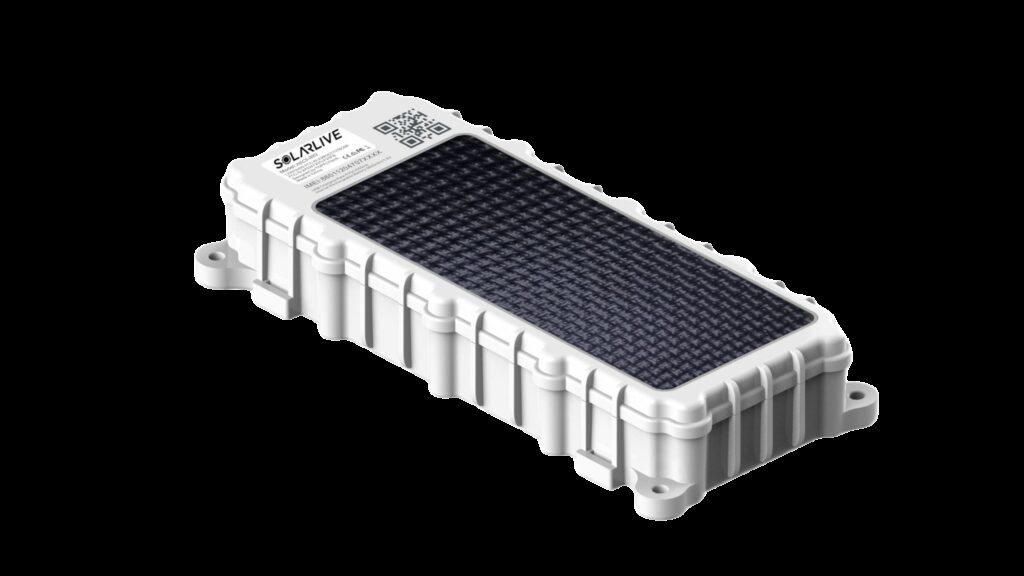

PROTECTIVE CASE

Extremely robust and long-lasting case, compact design at just 260mm * 100mm * 30mm.

  • Variable mounting options

  • Optional vandalism protection by Polycarbonate

  • Protection class IP69k.

  • Fully ruggedized - designed for harsh conditions

SolarLive Mounted

BATTERY LIFE

SolarLive has a very high battery capacity of LiPo 13.8 Ah / >17 Ah. To further increase the battery capacity, a housing extension (horizontal/vertical) is possible.

  • Sustaining battery-recharging

  • Life span and endurance maximization

  • Solar-based energy harvesting

  • Unique solar charger intelligence

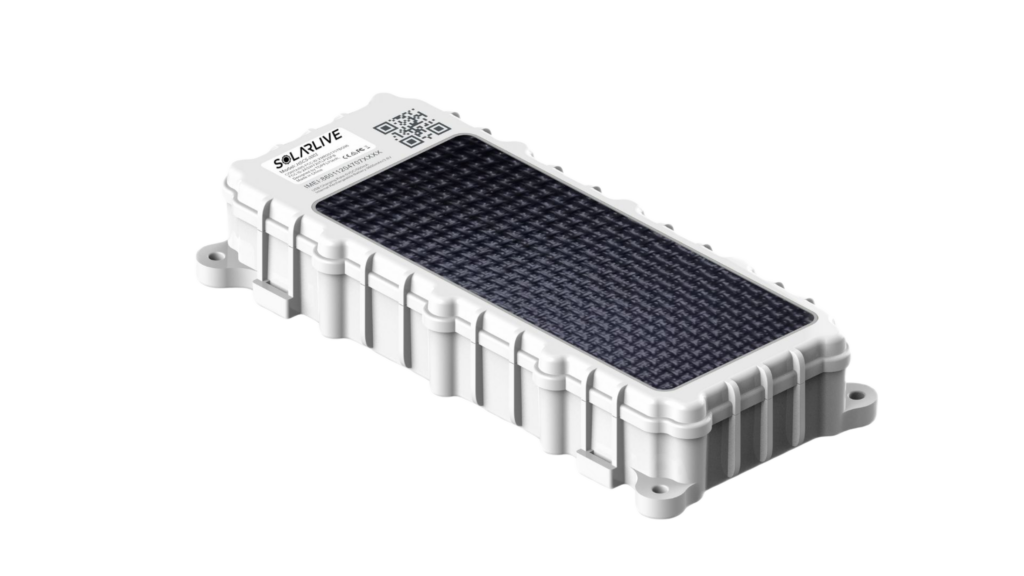

SolarLive Protective casing

CONNECTIVITY

Worldwide connectivity that allows container tracking without electricity to be located easily.

  • 4G catM1 (LTE-M) / fallback 2G

  • Optional: Standard-BLE or MESH-IoT-BLE

  • Reliable GPS, Cell-ID tracking

  • GSM quadband

Battery Life

SolarLive has a very high battery capacity of LiPo 13.8 Ah / >17 Ah. To further increase the battery capacity, a housing extension (horizontal/vertical) is possible.

  • Sustaining battery-recharging

  • Life span and endurance maximization

  • Solar-based energy harvesting

  • Unique solar charger intelligence

SolarLive Protective casing

PROTECTIVE CASING

Extremely robust and long-lasting case, compact design at just 260mm * 100mm * 30mm.

  • Protection class IP69k.

  • Fully ruggedized - designed for harsh conditions

  • Variable mounting options

  • Optional vandalism protection by Polycarbonate

SolarLive Mounted

CONNECTIVITY

World wide connectivity that allows logistic objects without electricity to be located easily.

  • 4G catM1 (LTE-M) / fallback 2G

  • Optional: Standard-BLE or MESH-IoT-BLE

  • Reliable GPS, Cell-ID tracking

  • GSM quadband and UMTS (optional CDMA)

Telematics Integration

API Integration Available

SEA FREIGHT VISIBILITY

With the telematics app integration, SolarLive users are able to see the GPS positioning of the seafaring vessel that is carrying their cargo at all times.

Supply chain and logistics professionals all over the world are able to transform their logistic workflows.

Users are now afforded with the tools and software for improved fleet management and reporting, more control possibilities through freely definable geofencing and greater flexibility through scalable interfaces and workflow management.

AUTOMATED REPORTING

For organisations with high volumes of shipments, monitoring all your assets in transport can be a daunting thought.

Depending on the nature of your cargo, there are numerous variables one must constantly monitor so as to not cause damage to the goods in transit.

SolarLive users that integrate with our telematics platform are able to automate the entire reporting process with all shipments, saving time and reducing stress.

GEOFENCING

SolarLive users are able to set up their own geofences enabling them to monitor activity in secure areas, allowing management to see alerts when anyone enters or leaves a specific area.

SolarLive also allows users to set circular geofences around addresses with defined diameters.

For more specific parameters corridors can be set for routes, polygons for detailed geofencing and multi-polygons for dynamic grouping.

  • SPECIFICATIONS
  • TECHNICAL DETAILS
Technical Item SolarLive
Dimensions (LxBxH) SolarLive approx. 260mm x 100mm x 30mm (Height 40mm with container fixation)
Bluetooth 5 2.4 GHz/40 channels, up to 1400m LoS
Digital Inputs Up to 4 (to be connected at factory)
Digital Output (optional) Optional (to be connected at factory)
Motion sensor Yes
Protocols supported TCP/IP or UDP via GPRS class B (Multi-slot 10 with PDU SMS as backup)
Worldwide Frequencies Selected bands on 700/800/850/900/1800/1900/2100
Technical Item SolarLive
Transmitter power Dynamic to max. 2W
GPS receiver Supersense, ephemeris prediction, super fast fix
Data Storage approx. 1.600 events
Serial Interface RS232 TTL (optional)
Rechargeable battery LiPo 17 Ah (optional 22 Ah)
Temperature range (rechargeable) -20 °C to 65 °C
Certifications CE
